Product Specifications

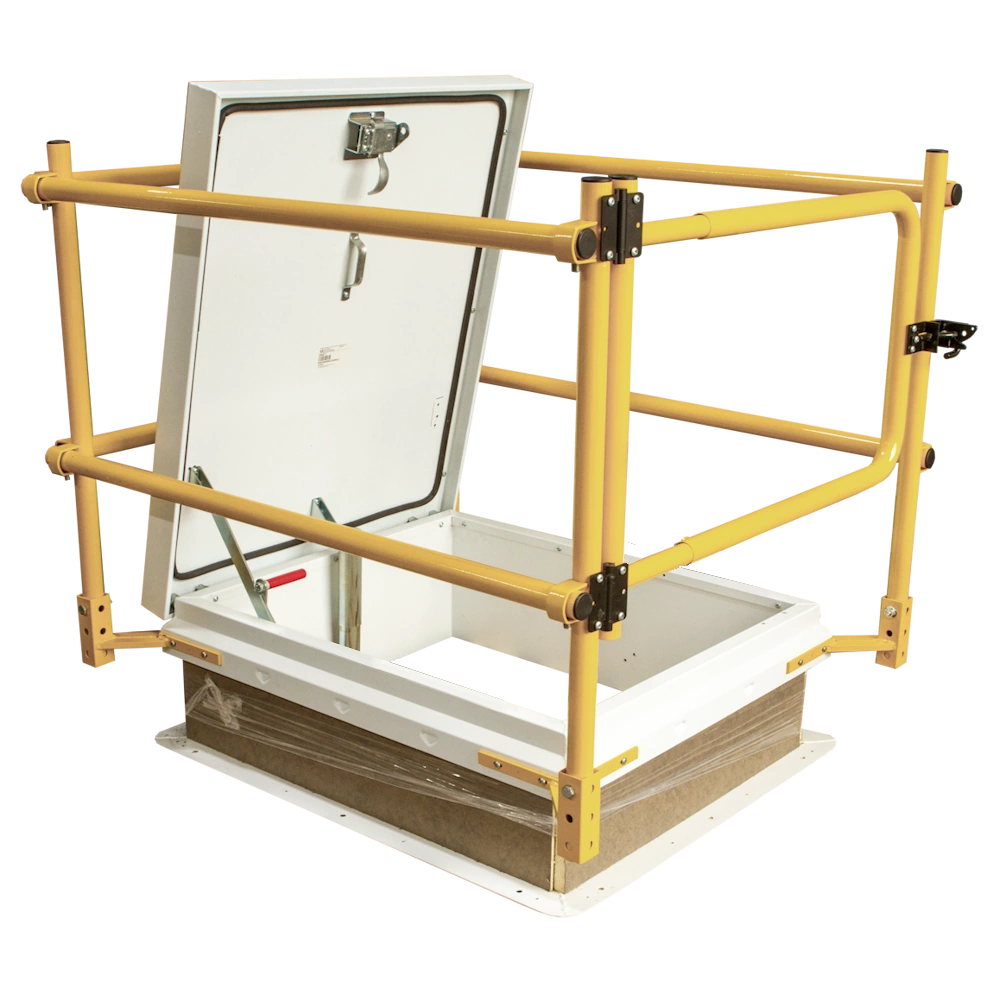

RHDG – STEEL DIAMOND SERIES ROOF HATCH
Material: 14 gauge galvanneal steel curb and cover with 22 gauge galvanneal steel liner
Finish: White textured powder coat
Hinge: Heavy duty clear zinc-plated steel pintle hinge
Latch: Clear zinc-plated steel slam latch with inside and outside handles and padlock hasps. Tested to 50psf wind uplift
Gasket: Continuous, weatherproof EPDM sponge rubber adhesive-backed seal
Spring: Counterbalanced compression springs contained in clear zinc-plated steel cylinders
Hold Open Arm: Clear zinc-plated steel hold-open arm
Insulation: 1” polyisocyanurate (R-6) on curb and in cover
RSHWB BOLT-ON RAILING
Material: 1-⅝” x .065″ (16 gauge) galvanized steel tubing
Bracket Material: 2″ x 2″ square galvanized steel tubing 1/4″ and 1/2″ plate CRS
Finish: Yellow powder coat
Hinges: Steel, adjustable spring hinges
Gate: Self-closing, self-latching with telescoping size adjustment
Latch: Steel, black powder coat pin hooks around gravity latch catch
Hardware: Black plastic tubing caps and zinc plated steel hardware
Performance: 200 lbs with maximum 3″ deflection per OSHA 1910.29, ANSI 1264.4 and 50 pounds per linear foot per 2024 IBC 1607.9 (ASCE 7).
