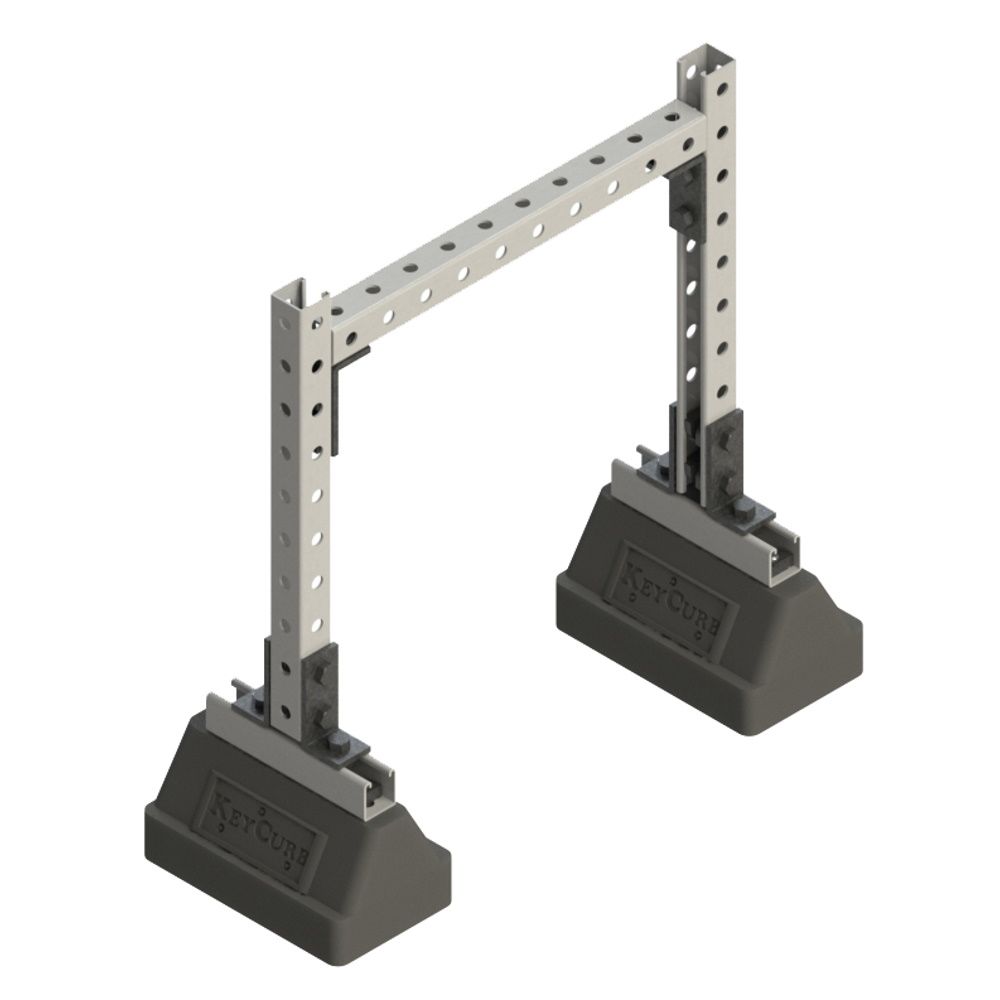

The KeyCurb system gives your supports a solid base and can be designed to fit a range of installation scenarios. Adjustable crossbars can be used up to 36″ height. KeyCurb base units support the metal framework and work well for either pipe runs or other equipment.
KeyCurb Base: Molded recycled rubber – each unit is 6″ wide by 10″ long, by 4.88″ high. 5 lbs.
Frame Channel: 1 – 5/8″ x 1 – 5/8″ pre-galvanized channel 8″ long.
Vertical Channel: 1 – 5/8″ x 1 – 5/8″ pre-galvanized channel 36″ height standard. 18″, 24″, 48″, 60″ high also available.

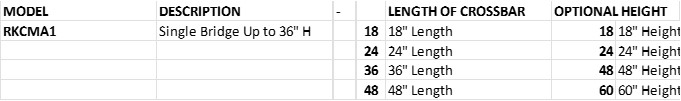

Horizontal Crossbar Channel: 1 – 5/8″ x 1 – 5/8″ pre-galvanized channel. Select from 18″, 24″, 36″, 48″ length.
| JL Keycurb Model | Previous Model | Description | Mifab C-port | Cooper Bline DuraBlock | Haydon H-Block | Miro |
|---|---|---|---|---|---|---|
| RKC | KC | Base | CXP | DBPa | HBS-STANDARD-BASE-ONLY | - |
| RKCSN1-8 | KS8 | Strut | C10 | DB10 | HBS-10-H-164-PG | 8-BS-5 |
| RKSN1-12 | KS12 | Strut | C10 | DB10 | HBS-10-H-164-PG | 8-BS-5 |
| RKSN1-16 | KS16 | Strut | C10 | BD10 | HBS-10-H-164-PG | 8-BS-5 |
| RKCSE1-8 | KSA8 | Strut Extension | CE10-12 | DBE10-12 | HBS-CE10-12-H-164-PG | 8-BS-12 |
| RCKSE1-12 | KSA12 | Strut Extension | CE10-12 | DBE10-12 | HBS-CE10-12-H-164-PG | 8-BS-12 |
| RKCSE1-16 | KSA16 | Strut Extension | CE10-12 | DBE10-12 | HBS-CE10-12-H-164-PG | 8-BS-12 |
| RKCRN1-4 | - | Roller | CR10-4 | DBR4-6 | HBS-R10-4-6-H-132-PG | 3-R-4 |
| RKCRN1-4 | - | Roller | CR10-4 | DBR4-6 | HBS-R10-4-6-H-132-PG | 3-RAH-8 |
| RKCRE1-4 | - | Roller Extension | CRE10-8-3 | DBR10-12 | - | 3-RAH-12 |
| RKCBN2-24 | - | Bridge | CB10-28 | BD10-28 | HBS-CB10-28-H-132-PG | 24-BS-5 |
| RKCBN-36 | - | Bridge | CB10-36 | Db10-36 | HBS-CB10-36-H-132-PG | 36-BS-5 |
| RKCBN2-48 | - | Bridge | CB10-50 | BD10-50 | HB5-CB10-50-H-132-PG | 48-BS-5 |
| RKCBE2-24 | - | Bridge Extension | - | - | HBS-CE10-12-H-164-PG | 20-BS-18 |
| RKCBE2-36 | - | Bridge Extension | - | - | HBS-CE10-12-H-164-PG | 20-BS-18 |
| RKCBE2-48 | - | Bridge Extension | - | - | HBS-CE10-12-H-164-PG | 20-BS-18 |
| RKCMA1-(hxw) | - | Multi-purpose Extension Single Base | DSAW-(WminxWmax) | - | HBS-DS2FW-(HXW)-H-132-PG | 6-DS |
| RKCMA1-(hxw) | - | Multi-Purpose Extentension Dual Base | DSAW-(WminxWmax) | - | HBS-DS2FW-(HXW)-H-132-PG | 8-DS |
| RKCMA1-(hxw) | - | Multi-Purpose Extension Single Base | DSAW-(WminxWmax) | - | HBS-DS2FW-(HXW)-H-132-PG | 10-DS |
| RKCMA2-(hxw) | - | Multi-Purpose Extension Dual Base | CESW(hxw) | DB(hxw)DS | HBS-PH-(h)-(w)-H-132-PG | 6-H |
| RKCMA2-(hxw) | - | Multi-Purpose Extension Dual Base | CESW(hxw) | DB(hxw)DS | HBS-PH-(h)-(w)-H-132-PG | 8-H |
| RKCMA2-(hxw) | - | Multi-Purpose Extension Dual Base | CESW(hwx) | DB(hxw)DS | HBS-PH-(h)-(w)-H-132-PG | 10-H |
| RKCMA2-(hxw) | - | Multi-Purpose Extension Dual Base | CESW(hxw) | BD(hxw)DS | HBS-PH-(h)-(w)-H-132-PG | 16-H |
Note: Not all sizes and options are listed, or available for all models, see submittal for details.
