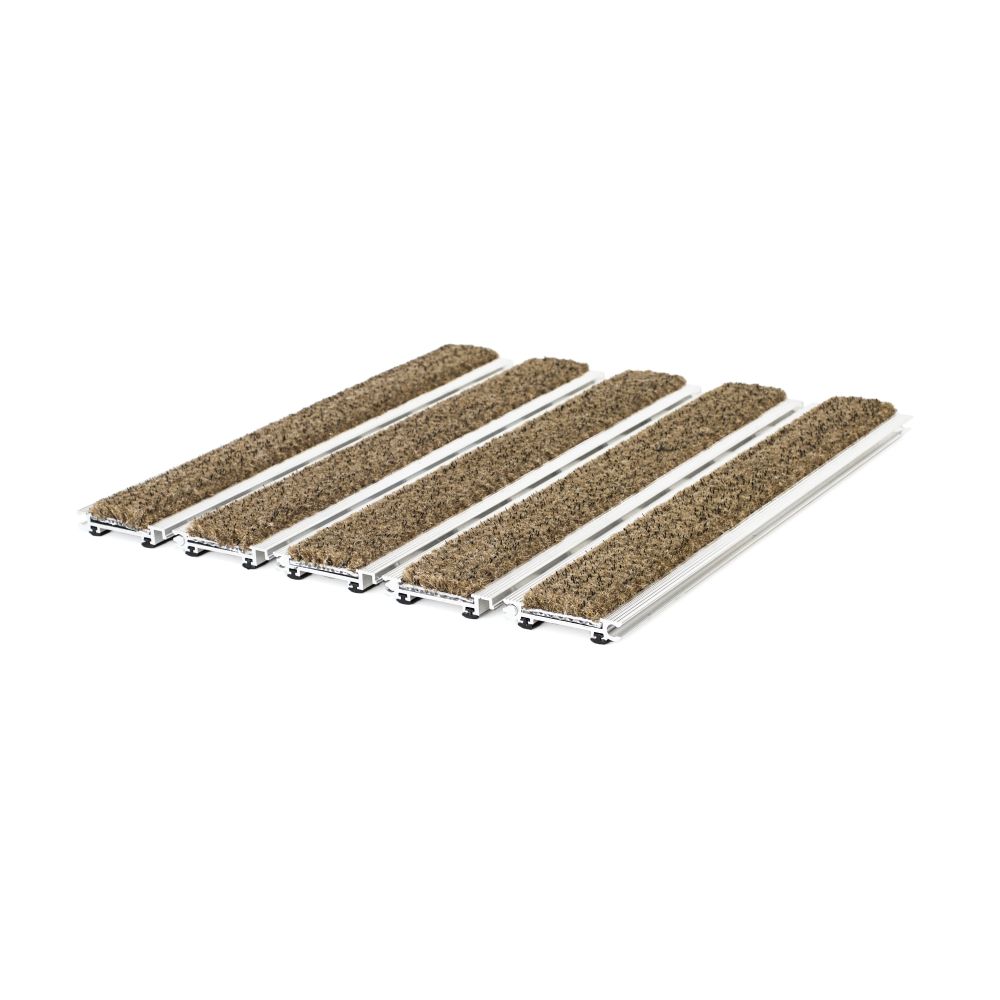

Activ-Mat™ 800 Series – 3/8″ Roll-Up Entrance Mat

JL Industries

The durable 800 series with aluminum hinges stands up to dirt with both the tread of your selection and aluminum scraping bars built in to each rail. The 800 series can be surface-mounted or recessed into a 7/16” deep opening.

  • Aluminum hinges are the most durable.
  • Add to existing entryways with the surface-mounted vinyl or base tray frame options.
  • Drainage holes between tread rails allows dirt and moisture to fall below mat.
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:

Product Specifications

Material: 6063-T6 extruded aluminum alloy tread rails and frames.

Depth: 3/8” (9.5 mm).

Frame Finish: Mill.

Tread Spacing: 2” (50.8 mm) on center with 6 treads per foot in the direction of travel.

Spacing Between Rails: Heelproof spacing of 5/16”.

Rolling Wheel Load Rating: 350 lbs.

Installation Options: Surface-mounted , recessed, door threshold.

Tread Options: Carpet, vinyl, serrated aluminum, abrasive or Tuff Tread ™ polypro carpet.

Frame Options: Color anodized

Downloads

ModelDescriptionSubmittalTread OptionsWarrantyInstall, O&M3 Part SpecsCatalog
EFRA8Recessed Aluminum FramePDFPDFPDFPDFDOCXPDF
EFRC8Cast-In Place FramePDFPDFPDFPDFDOCXPDF
EFRT8Recessed Threshold FramePDFPDFPDFPDFDOCXPDF
EFSA8Surface Mounted Aluminum FramePDFPDFPDFPDFDOCXPDF
EFSV8Surface Mounted Vinyl FramePDFPDFPDFPDFDOCXPDF
EFST8Surface Mounted Base TrayPDFPDFPDFPDFDOCXPDF

Cross-Reference

JL IndustriesDescriptionBabcock/NystromConstruction SpecialtiesReese EnterprisesPawling
EM800Carpet TreadBMD38P/MD38PM2HC Pedimat546 Perfec MatEM-800-MLW Rol-Dek
EM801Vinyl TreadBMD38V/MD38VM2V547EM-800-RCV
EM802Serrated Aluminum Tread-M2SAI542EM-800-CA
EM804Serrated Vinyl TreadBMD38G/MD38GM2VA549EM-800-AA
EM805Tuff TreadBMD38R/MD38RM2EC543EM-800-BF
JL IndustriesDescriptionBabcock/NystromConstruction SpecialtiesReese EnterprisesPawling
EFRA8Recessed Aluminum FrameFLBMTapered Angle Frame548SSF-125
EFSA8Surface Mount Aluminum FrameFSAMSM - Aluminum544BSF-225
EFSV8Surface Mount Vinyl Frame-SM - Vinyl545Beveled Vinyl Nosing
EFRT8Threshold Aluminum Frame-Threshold--
EFST8Surface Mount Vinyl Tray----
EFRC8Recessed Cast-In Place Aluminum FrameFLBCRecessed Level Base Frame540MRF-1002

View Cross Reference Chart

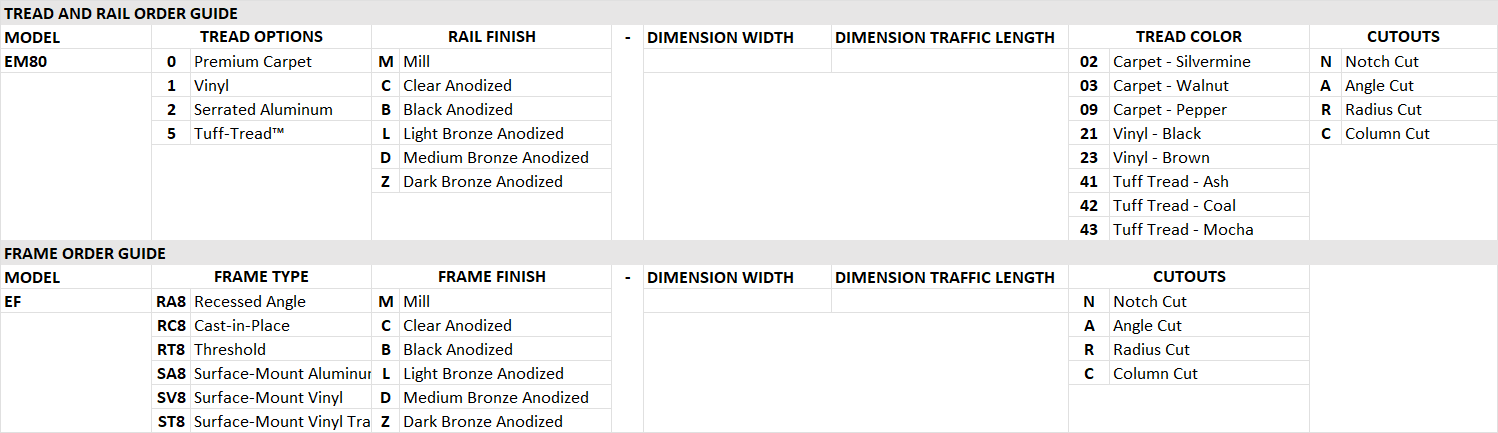

Order Guide

Note: Not all sizes and options are listed, or available for all models, see submittal for details.
