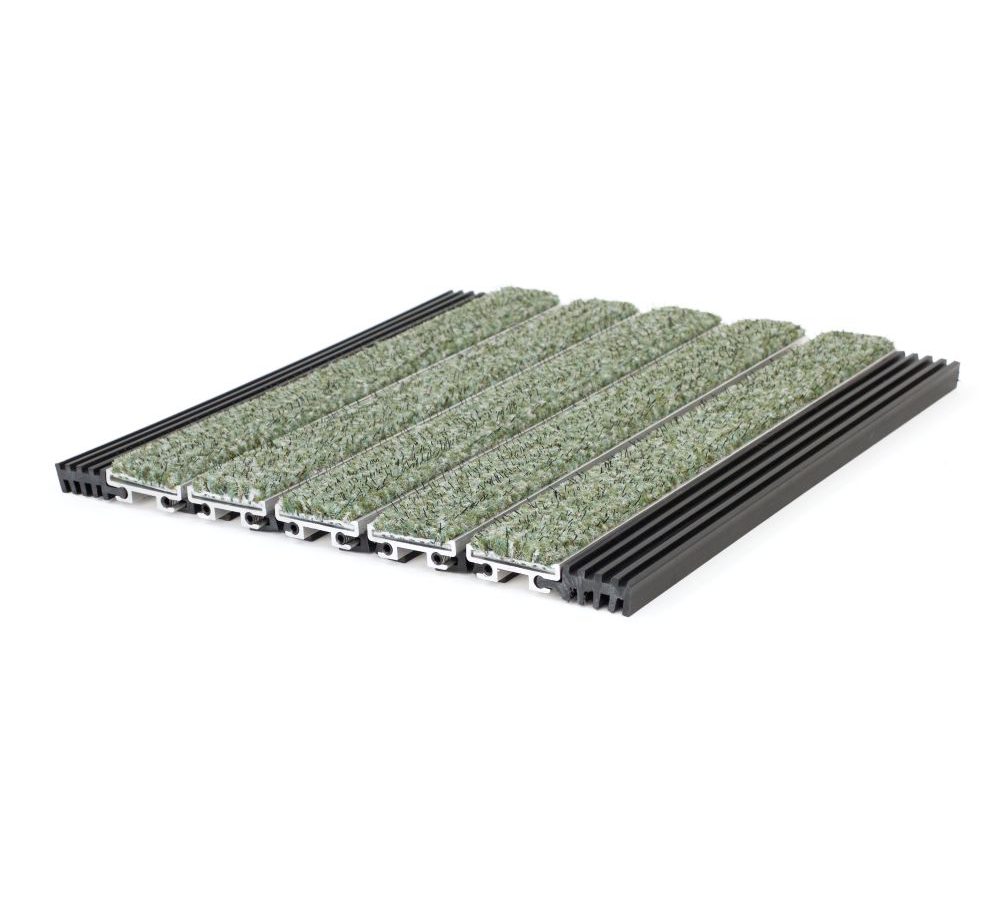

Activ-Grate™ 400 Series – 1/2″ Roll-Up Entrance Grate

JL Industries

JL’s 400 series for heavy foot and cart traffic has been tested to accommodate a 750 lb wheel load rating. Densely-spaced treads provide more tread surface area than mats, to keep your building cleaner.

  • Perforated LDPE hinges to allow for moisture and dirt to fall below grating
  • Rolls up for easy cleaning
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , Brand:

Product Specifications

Material: 6063-T5 and 6063-T6 extruded aluminum alloy tread rails and frames.

Depth: 1/2” (12.7 mm).

Frame Finish: Mill.

Tread Spacing: 1-1/2” (38.1 mm) on center with 8 treads per foot in the direction of travel.

Spacing Between Rails: Heelproof spacing of 5/32”.

Rolling Wheel Load Rating: 750 lbs.

Installation Options: Recessed.

Tread Options: Carpet, vinyl, serrated aluminum, abrasive or Tuff Tread ™ polypro carpet.

Frame Options: Color anodized

Downloads

ModelDescriptionSubmittalTread OptionsWarrantyInstall, O&M3 Part SpecsCatalog
EFRA4Grating with Recessed FramePDFPDFPDFPDFDOCXPDF
EFRT4Grating with Recessed Threshhold FramePDFPDFPDFPDFDOCXPDF
EFSA4Grating with Surface Mounted Aluminum FramePDFPDFPDFPDFDOCXPDF

Cross-Reference

JL IndustriesDescriptionConstruction Specialties
EG400Carpet TreadG3HC Peditread
EG401Vinyl TreadG3V
EG402Serrated Aluminum TreadG3SAI
EG404Serrated Vinyl TreadG3VA
EG405Tuff TreadG3EC
JL IndustriesDescriptionConstruction Specialties
EFRA4Recessed Aluminum FrameTapered Angle Frame
EFSA4Surface Mount Aluminum FrameSM - Aluminum
EFRT4Threshold Aluminum FrameThreshold

View Cross Reference Chart

Order Guide

Note: Not all sizes and options are listed, or available for all models, see submittal for details.
