Activ-Mat™ 700 Series -3/8″ Roll-Up Entrance Mat

JL Industries

The 700 Series mat combines the benefit of tread with aluminum scraping bars built in to each rail to keep your building cleaner. Available as surface-mounted or recessed.

  • LDPE Hinges are quiet and flexible enough to roll up to remove for cleaning.
  • Surface-mounted option is ideal for existing entryways.
  • Drainage holes between tread rails allows debris and moisture to fall below mat.
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:

Product Specifications

Material:6063-T6 extruded aluminum alloy tread rails and frames.

Depth: 3/8” (9.5 mm).

Frame Finish: Mill.

Tread Spacing: 2” (50.8 mm) on center with 6 treads per foot in the direction of travel.

Spacing Between Rails: Heelproof spacing of 5/16”.

Rolling Wheel Load Rating: 350 lbs.

Installation Options: Surface-mounted , recessed, door threshold.

Tread Options: Carpet, vinyl, serrated aluminum, abrasive or Tuff Tread ™ polypro carpet.

Frame Options: Color anodized

Downloads

ModelDescriptionSubmittalTread OptionsWarrantyInstall, O&M3 Part SpecsCatalog
EFRA7Recessed Aluminum FramePDFPDFPDFPDFDOCXPDF
EFRC7Cast-In Place FramePDFPDFPDFPDFDOCXPDF
EFRT7Recessed Threshold FramePDFPDFPDFPDFDOCXPDF
EFSA7Surface Mounted Aluminum FramePDFPDFPDFPDFDOCXPDF
EFSV7Surface Mounted Vinyl FramePDFPDFPDFPDFDOCXPDF
EFST7Surface Mounted Base TrayPDFPDFPDFPDFDOCXPDF

Cross-Reference

JL IndustriesDescriptionBabcock/NystromReese EnterprisesPawling

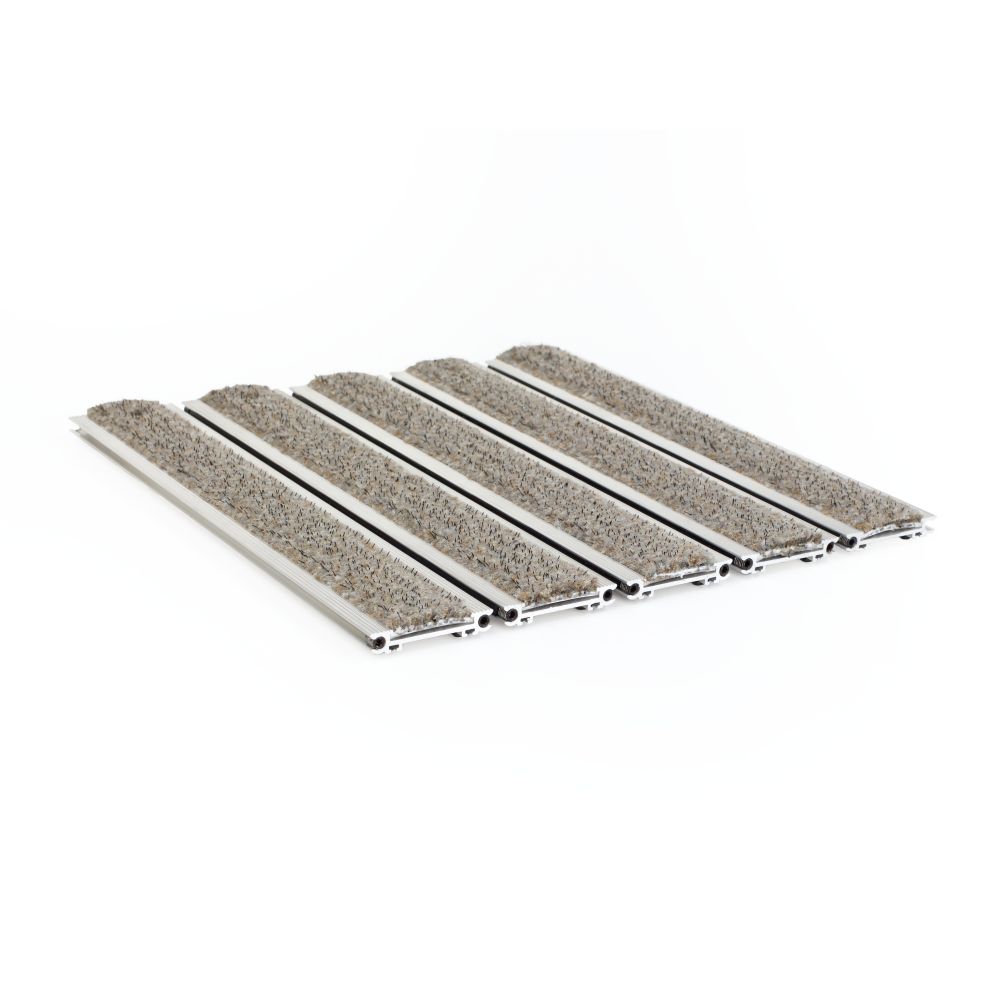

EM700Carpet TreadBMQ38P/MQ38P536 Perfec MatEM-650-MLW Rol-Dek

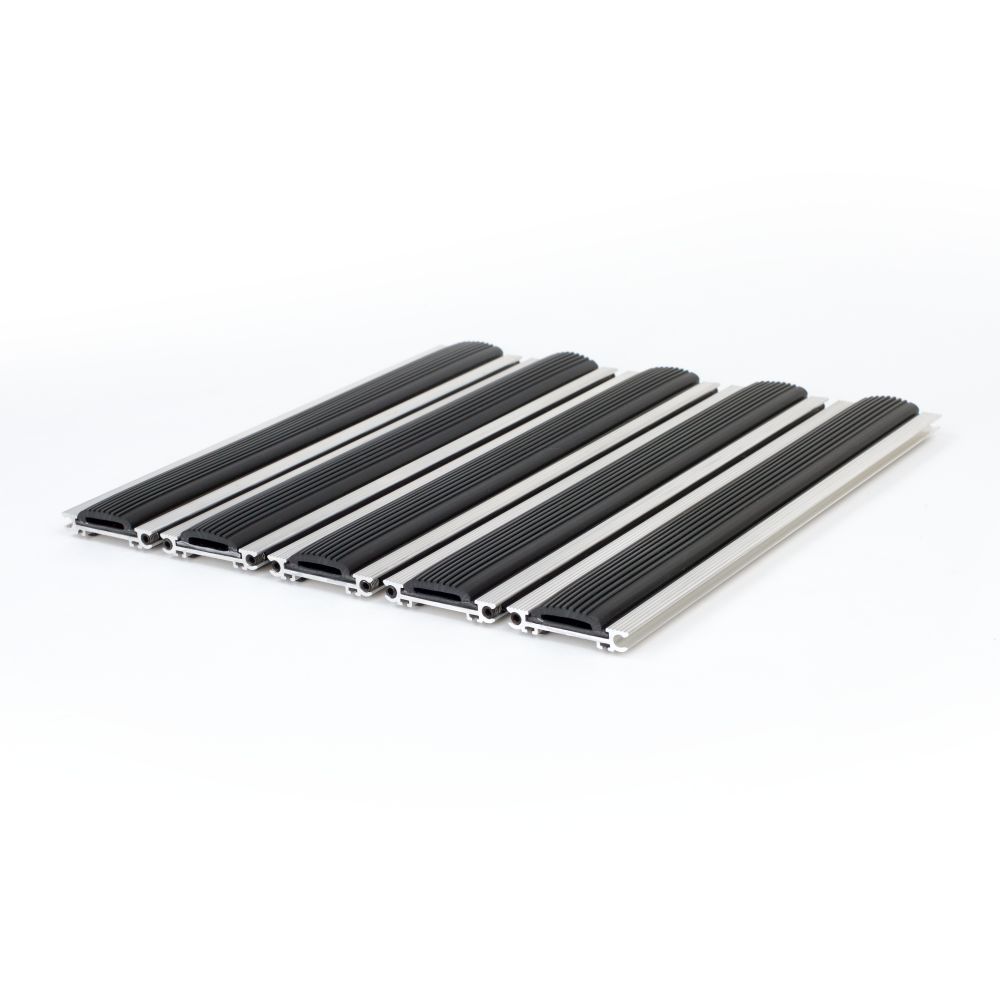

EM701Vinyl TreadBMQ38V/MQ38V537EM-650-RCV

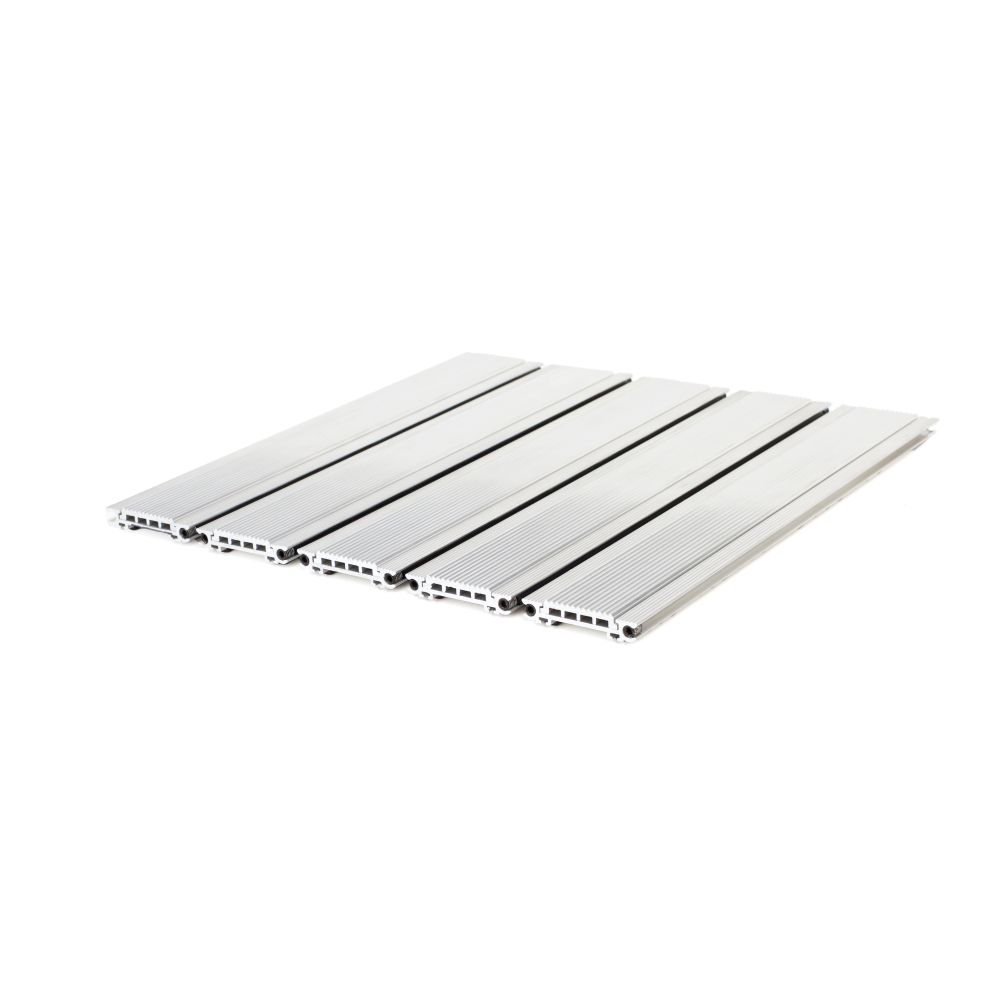

EM702Serrated Aluminum TreadBMQ38A/MQ38A-EM-650-CA
EM704Serrated Vinyl TreadBMQ38G/MQ38G539EM-650-AA

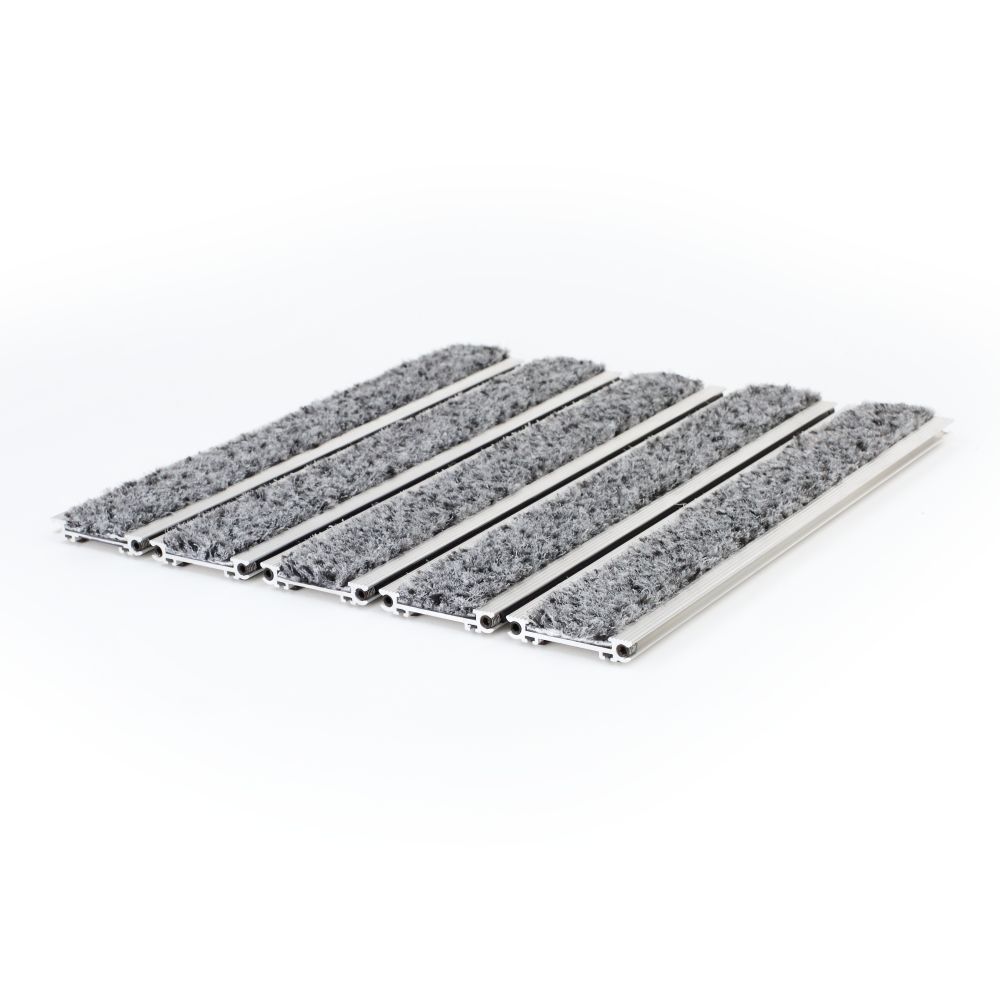

EM705Tuff TreadMBQ38R/MQ38R538EM-650-BF
JL IndustriesDescriptionBabcock/NystromReese EnterprisesPawling
EFRA7Recessed Aluminum FrameFLBM548SSF-125
EFSA7Surface Mount Aluminum FrameFSAM544BSF-225
EFRT7Threshold Aluminum Frame---
EFST7Surface Mount Vinyl Tray ---
EFRC7Recessed Cast-In Place Aluminum FrameFLBC540MRF-1002

View Cross Reference Chart

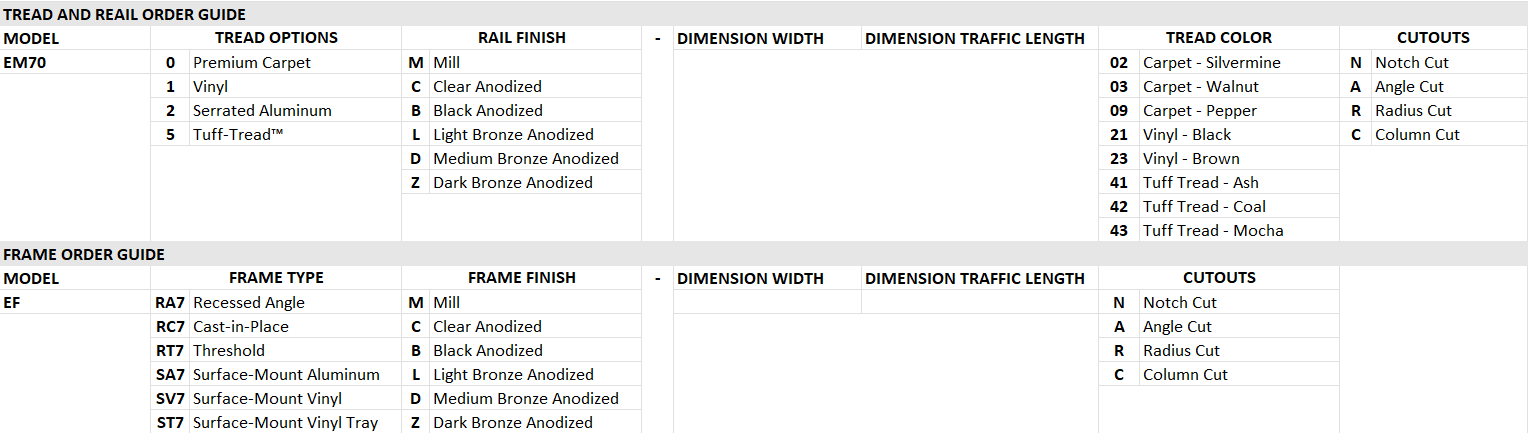

Order Guide

Note: Not all sizes and options are listed, or available for all models, see submittal for details.
