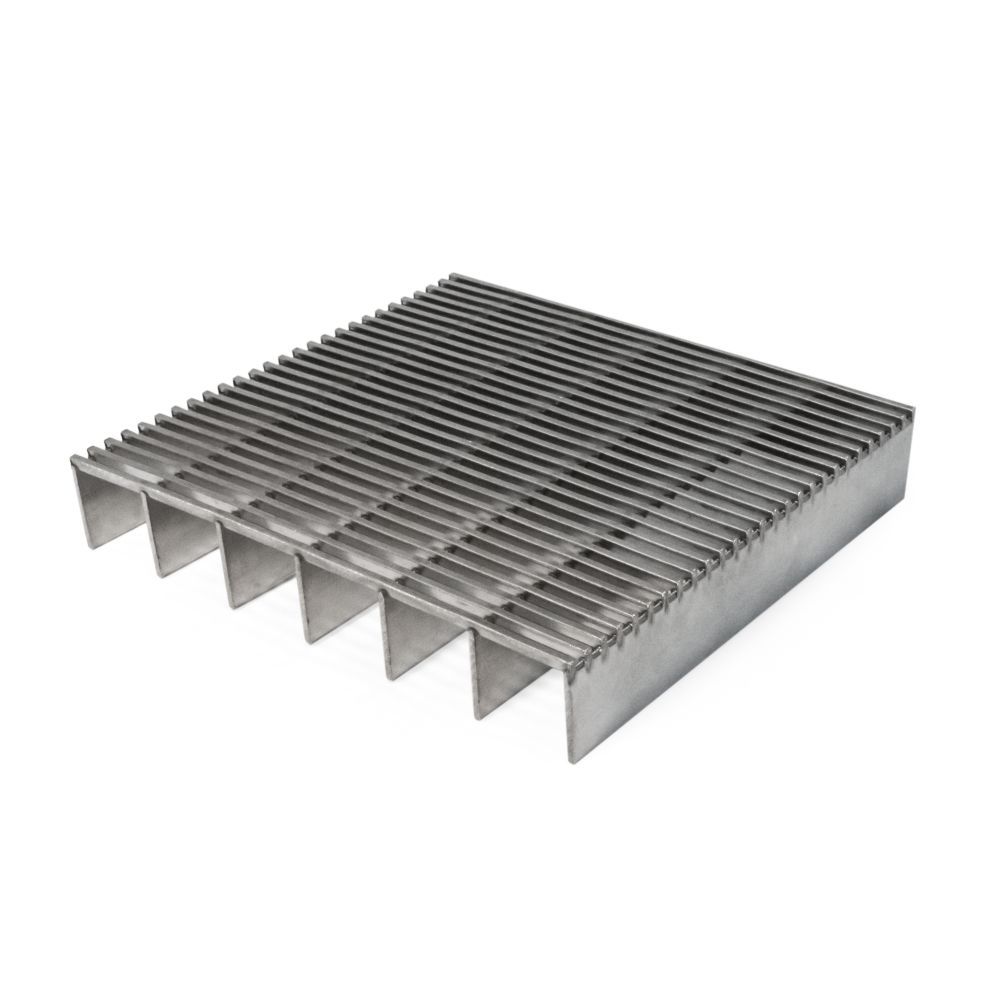

Activ-Grille™ 500 Series – Stainless Steel Entrance Grille

JL Industries

Enjoy the elegant look of low maintenance, long life stainless steel in your building entrance. Whether for a new building or retrofit of an existing facility, the stainless grille always provides an upgraded look.

  • Non flammable
  • Wheel loads up to 1000 lbs
  • High recycled metal content
Category: Tags: , , , , , , , , , , , , , , , , , , , Brand:

Product Specifications

Material: Type 304 stainless steel.

Depth: 3/8” (9.5 mm), 5/8” (15.88 mm) or 1-1/8” (28.58 mm). Standard Finish: #4 Satin.

Tread Spacing: .233” (5.92mm) on center

Spacing Between Rails: Heelproof spacing of .156”

Rolling Wheel Load Rating: 1000 lbs

Installation Options: Recessed

Downloads

ModelSubmittalFrame DetailsWarrantyInstall, O&M3 Part SpecsCatalogEnvironmental
EG500PDFPDFPDFPDFDOCXPDFPDF

Cross-Reference

JL IndustriesDescriptionBabcock/NystromConstruction SpecialtiesPawling
EG503Stainless Steel GrilleBGE38/GE38Gridline G6RG-700
EG508Stainless Steel GrilleBGE58/GE58Gridline G6RG-710
EG509Stainless Steel GrilleBGE98/GE98Gridline G6RG-720
JL IndustriesDescriptionBabcock/NystromConstruction SpecialtiesPawling
EFRA53Recessed Angle FrameFLBMRecessed Level Base Frame-
EFRA58Recessed Angle FrameFLBMRecessed Level Base FrameAngle Frame
EFRA59Recessed Angle FrameFLBMRecessed Level Base FrameAngle Frame

View Cross Reference Chart

Order Guide

Note: Not all sizes and options are listed, or available for all models, see submittal for details.
